ANCEL L8000 Automotive Smoke Machine, Dual Mode Diagnostic Leak Tester for EVAP & Turbo Systems, Built-in Air Pump & Color LCD, Adjustable Pressure & Run Time, Compatible with Multiple Vehicles

★★★★★ 4.3 138 reviews

US$160.00

Price when purchased online

Free shipping Free 30-day returns

Sold and shipped by remodelprosinc.com

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.

US$160.00

Price when purchased online

Free shipping Free 30-day returns

How do you want your item?

I want shipping & delivery savings with Walmart+✦

You get 30 days free! Choose a plan at checkout.

Shipping

Arrives Sep 14

Free

Pickup

Check nearby

Delivery

Not available

Sold and shipped by remodelprosinc.com

Free 30-day returns Details

Product details

Management number	237855070	Release Date	2026/07/11	List Price	US$160.00	Model Number	237855070
Category	Uncategorized

<h1 style="font-family:Arial;background-color:#FFFFFF;"> ANCEL L8000 Automotive Smoke Machine | Dual Mode Diagnostic Leak Tester for EVAP & Turbo Systems | Built-in Air Pump & Color LCD | Adjustable Pressure & Run Time | Compatible with Multiple Vehicles </h1> <div style="font-family:Arial;font-size:medium;background-color:#FFFFFF;"> 📌SPECIFICATIONS: </div> ➢ Voltage: 12V DC ➢ Output Pressure: EVAP: 0.44-0.5 psi (30 - 35 mBar) HP internal pump Max 20 psi (138 kPa) ➢ Power Consumption: Max 6.5 Amps ➢ Smoke Output: 6-8L / min ➢ Operating Temperature: 0°F to 140°F (-17°C to 60°C ) ➢ Operating Humidity: No Restrictions ➢ Operating Altitude: No Restrictions ➢ Vapor Output Hose: 8.2 feet ➢ Power Cable: 8.2 feet ➢ Pressure Supply: Build-In Air Pump ➢ Smoke Test Time can be adjusted by the user. ➢ Recommended Oil: Priority: No.26 Mineral Oil. Second: Baby Oil. It is advised to add 0.7oz oil at a time! Watch the black mark on the dipstick after unscrewing the oil cap. 🔑SETUP: 1, Connect the smoke hose: Connect the smoke hose to the smoke hose fitting on the operation panel.  2, Fill the unit with oil: Recommend to fill No.26 Mineral Oil ( Max 1/2oz at a time). To check oil level. Put the dip stick in  the oil fill hole. DO NOT SCREW THE DIP STICK IN. Remove the dip stick and check the level. 3, Connect the power cord: Connect the power cord to the unit. Connect the red wire with the red socket and the black  wire with the black socket. Connect the red clamp (+) to the positive battery terminal and connect the black clamp (-) to  the chassis ground. 🌈DIAGNOSTIC Note: Refer to the vehicle manufactures recommendation for the maximum pressure of each Target System that will be tested. 1️⃣Finding Leaks “High Pressure (Turbo)” or “Low Pressure (EVAP)” Mode: 1. Once the system is pressurized with smoke, use the flashlight from the kit to search for leaks. If a leak is present the smoke will illuminate when the light passes through the smoke. 2️⃣Leak Decay Testing “High Pressure (Turbo)” Mode: 1. Perform High Pressure (Turbo) Pressure decay test Procedure. 2. Use the SMOKE to find the leak. 3. Repair and re-test until no more leaks are found.Leak Decay Testing “Low Pressure (EVAP)” Mode: 1. Perform Low Pressure (EVAP) Pressure decay test Procedure. 2. Use the SMOKE to find the leak. 3. Repair and re-test until no more leaks are found. 3️⃣Intake Leaks “High Pressure (Turbo)” Mode: 1. Disconnect the intake air duct from the air filter box. 2. Insert the intake bladder or the cone adapter that is supplied with the kit into the intake duct. 3. Attach the intake bladder or the cone adapter to the smoke hose cone. 4. Perform High Pressure (Turbo) Smoke Test Procedure.  5. Use the flashlight to locate any leaks. NOTE: Some vacuum hoses may need to be capped to find small or to isolate leaks. NOTE: Some intakes may not be 100 percent sealed by design. 6. Repair and re-test until no more leaks are found. 4️⃣Vacuum Lines and Vacuum Component Leaks “High Pressure (Turbo)” Mode: 1. Disconnect the vacuum line for the component or vacuum circuit that is to be tested. 2. Insert the smoke hose cone to the vacuum line. 3. Perform High Pressure (Turbo) Smoke Test Procedure.  4. Use the flashlight to locate any leaks. Note: The air filter box may need to be sealed so that the circuit being tested does not back flow into the air  filter box. Note: Some vacuum hoses may need to be capped to find small or to isolate leaks. Note: Some vacuum components may be not be 100 percent sealed by design. 5. Repair and re-test until no more leaks are found. 5️⃣Exhaust Leaks “High Pressure (Turbo)” Mode: 1. Insert the cone adapter that is supplied with the kit into the tail pipe of the exhaust. NOTE: If the vehicle has dual exhaust, use the cap plugs to seal the other tail pipe. 2. Perform High Pressure (Turbo) Smoke Test Procedure. NOTE: Some smoke may be consumed by a hot catalytic converter. 3. Use the flashlight to locate any leaks. NOTE: Exhaust leaks are easier to find when the exhaust system is at ambient temperature. 4. Repair and re-test until no more leaks are found. 6️⃣Under the Dashboard Leaks “High Pressure (Turbo)” Mode: 1. Disconnect the vacuum line for the component or vacuum circuit that is to be tested. 2. Insert the smoke hose cone into the vacuum line. 3. Perform High Pressure (Turbo) Smoke Test Procedure. 4. Use the flashlight to locate any leaks. 5. Repair and re-test until no more leaks are found. NOTE: The central locking can be checked in the same manner. Activate the control solenoids while smoke is being  pumped into the system. 7️⃣EVAP Leaks “Low Pressure (EVAP)” Mode: 1. Verify that a leak is present using the Leak Decay Test with the Internal Pump or Air/Inert Gas. 2. If the vehicle has an EVAP service port (Green Cap) then remove the schrader valve with the removal/in- staller tool that is supplied with the kit. (NOTE: The schrader valve has left-hand threads. Turn the valve clockwise to remove) Attach the service port adapter that is supplied with the kit to the EVAP service port. Attach the EVAP service port adapter hose to the smoke hose cone.If the vehicle does not have an EVAP service port, then one of the EVAP vacuum hose will have to be disconnected. One hose will have to be capped with the plugs that is supplied with the kit. Attach the other hose to the smoke hose cone. 3. Use a scan tool to close the EVAP canister vent solenoid. 4. Perform Low Pressure (EVAP) Smoke Test Procedure. 5. Remove the fuel cap. When smoke is present exiting the fuel tank, re-install the fuel cap. 6. While the smoke is still being pumped into the vehicle, use the flashlight to locate the leak(s). 7. Repair and re-test until no more leaks are found.   🫧SAFETY: This user manual should not be used in place of common sense. Use this equipment in a manner that is specified with the vehicle manufacturer. Understand all the test procedures before attempting to use this equipment. Follow all safety precautions. • All diagnostic work should be performed with the engine off. • Do not leave the vehicle unattended when the equipment is connected or operating. • This equipment must be connected only to a fully charged 12VDC vehicle battery. 🫧WARNING: • Do not use any other type of power source to run this equipment. • Do not use this equipment near a source of spark or ignition. • Always use this equipment in a well-ventilated area. • Always wear eye protection and gloves when using this equipment. • Do not put shop air into the smoke hose or the smoke hose connection. Damage will occur. 🎁Package List 1*L8000 Smoke Machine 23*Set of block off caps Exhaust cone Evap accessories Air Intake Bladder

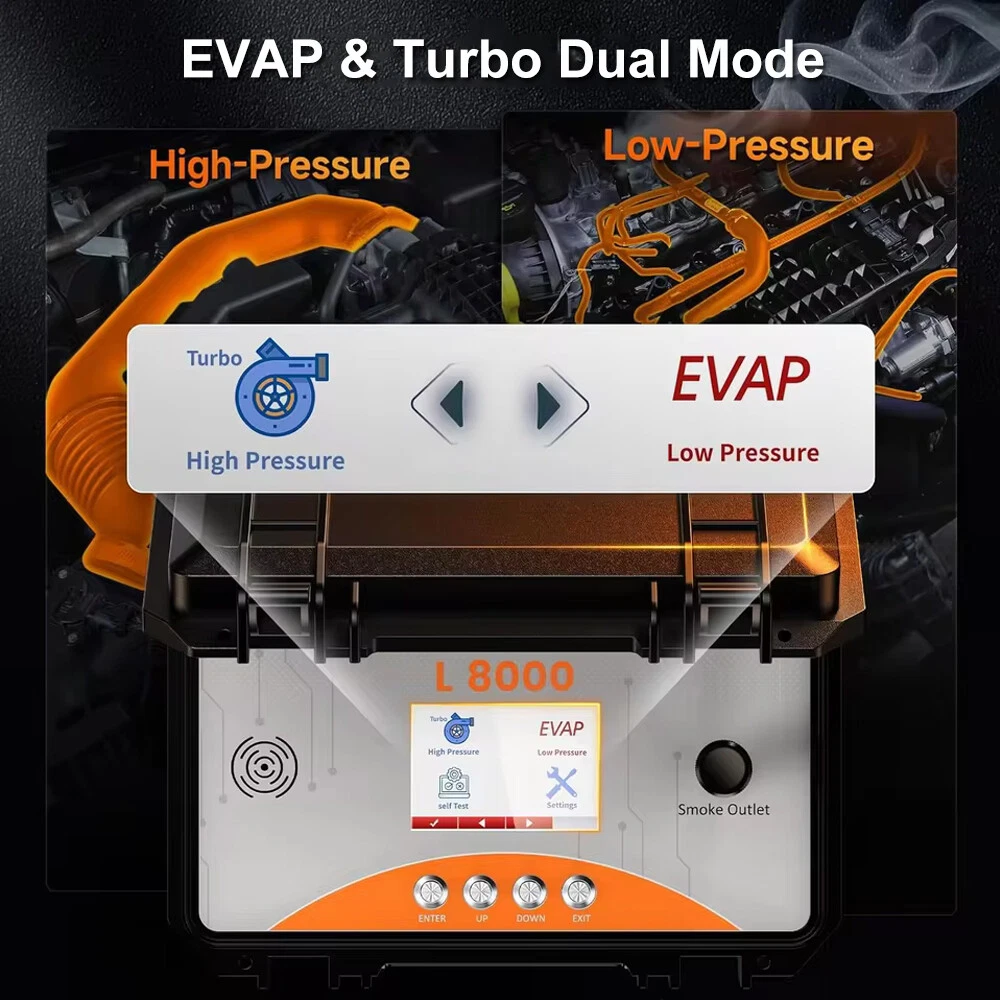

🔥【DUAL MODE】

Does what NO other automotive smoke machine has done. Perform all types of diagnostic leak detection with one machine. Safely test both low-pressure evaporative emissions and high-pressure boosted systems using air or smoke mode. Quickly locate and repair leaks in various automotive systems, including turbos, intakes, exhausts, vacuum lines, cooling systems, manifolds, brake boosters, passenger compartments, and more. Save valuable service hours and boost efficiency.
🔥【BUILT-IN AIR PUMP】

Mobile repairs are now possible as L8000 includes an internal compressor, no longer needing shop air. Its compact design ensures total portability and quick setup, making it perfect for both fieldwork and workshop use. Enjoy quick and precise leak detection with stable pressure and low-noise operation. This versatile, cost-effective tool enhances work efficiency and reduces overall costs, ideal for car owners of all skill levels.
🔥【INNOVATIVE TECHNOLOGY】

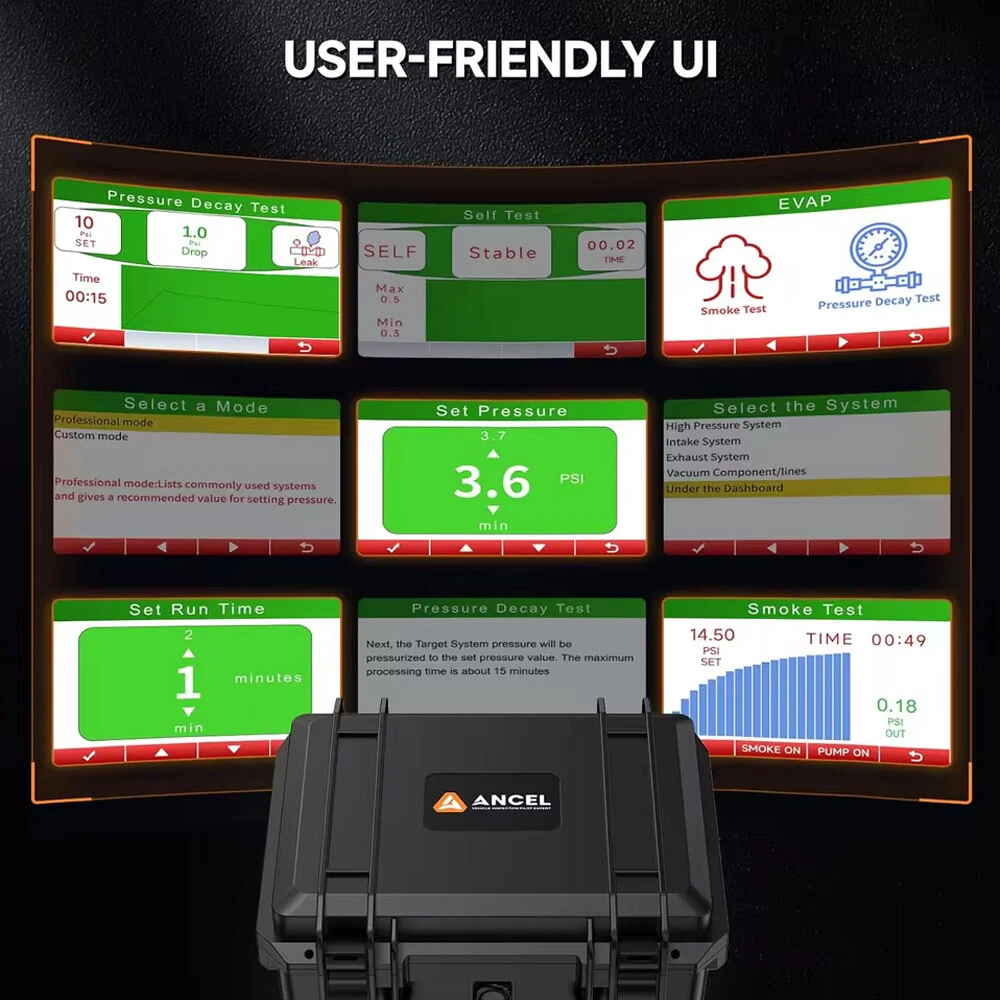

Introducing a new standard in leak detection with an advanced LCD display and integrated protective case. This device provides real-time monitoring and user-friendly operation, designed for durability and efficiency. Its all-in-one design eliminates the need for separate packaging, offering a cost-effective solution for professional technicians and automotive enthusiasts. Upgrade now to experience the latest in automotive diagnostics.
🔥【FLEXIBILITY AT YOUR FINGERTIPS】

Set the exact duration and pressure for thorough leak detection with our advanced smoke leak detector, ensuring every leak is detected accurately. The adjustable settings provide precise diagnostics, reducing false positives. The multilingual interface allows technicians worldwide to switch languages easily for efficient use in any workshop, enhancing overall diagnostic flexibility and accuracy.
🔥【INCLUDES ALL ACCESSORIES】

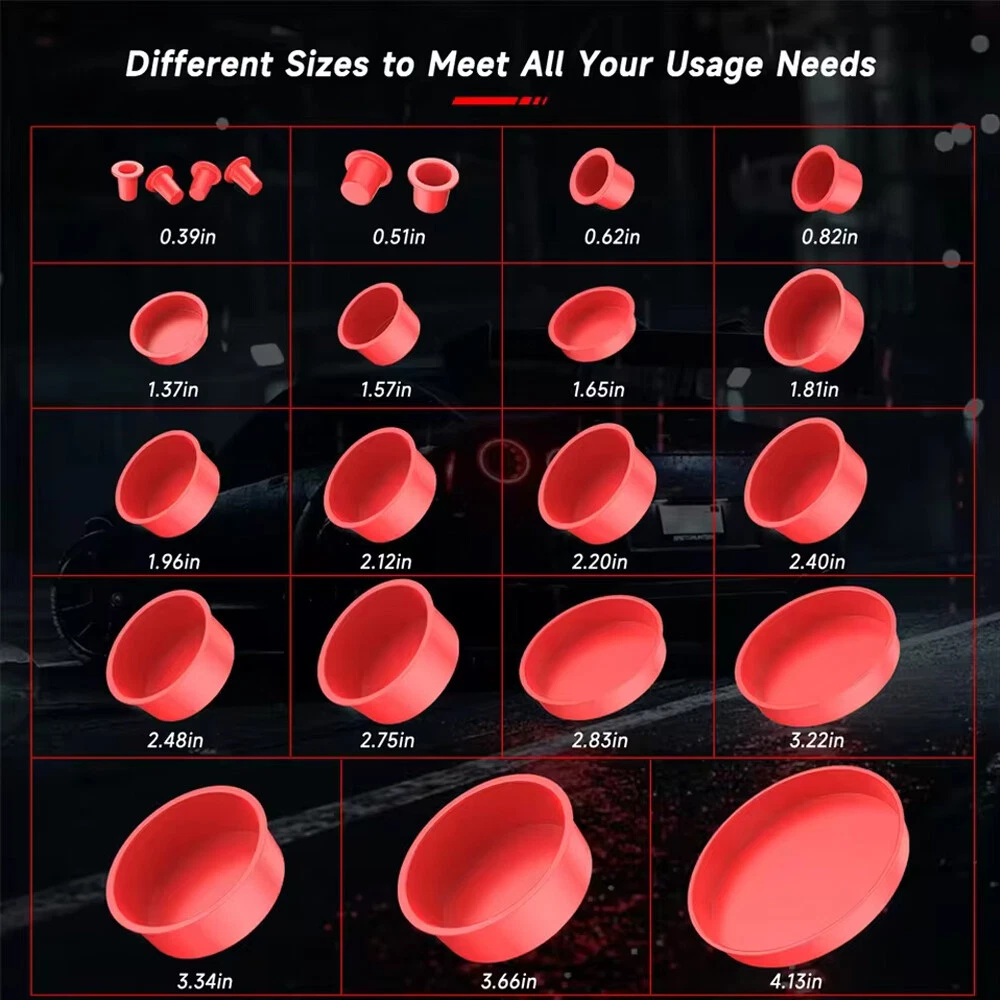

Comes with a complete set of rubber cone adapters and various-sized connectors, ensuring a perfect fit and tight seal for different vehicle systems. The variety of plugs allows you to seal open ports, focusing smoke for accurate leak detection. All components are organized in a robust storage case for easy transport and access.
🔥【FRIENDLY REMINDER】

Please note that the LCD display of your ANCEL L8000 is protected by a thin film to prevent scratches during shipping. If you notice any bubbles or imperfections on the screen, this is likely due to the protective film. Simply peel off the film gently to reveal the flawless screen underneath. This does not indicate a defect in the product.

Automotive diagnostic tool type	Professional Scanners
Brand	ANCEL
Compatible cars	Multiple Vehicles
Vehicle fitment type	Specific
Vehicle type	Car
Features	Portable
Model	L8000
Accessories	Rubber cone adapters and various-sized connectors

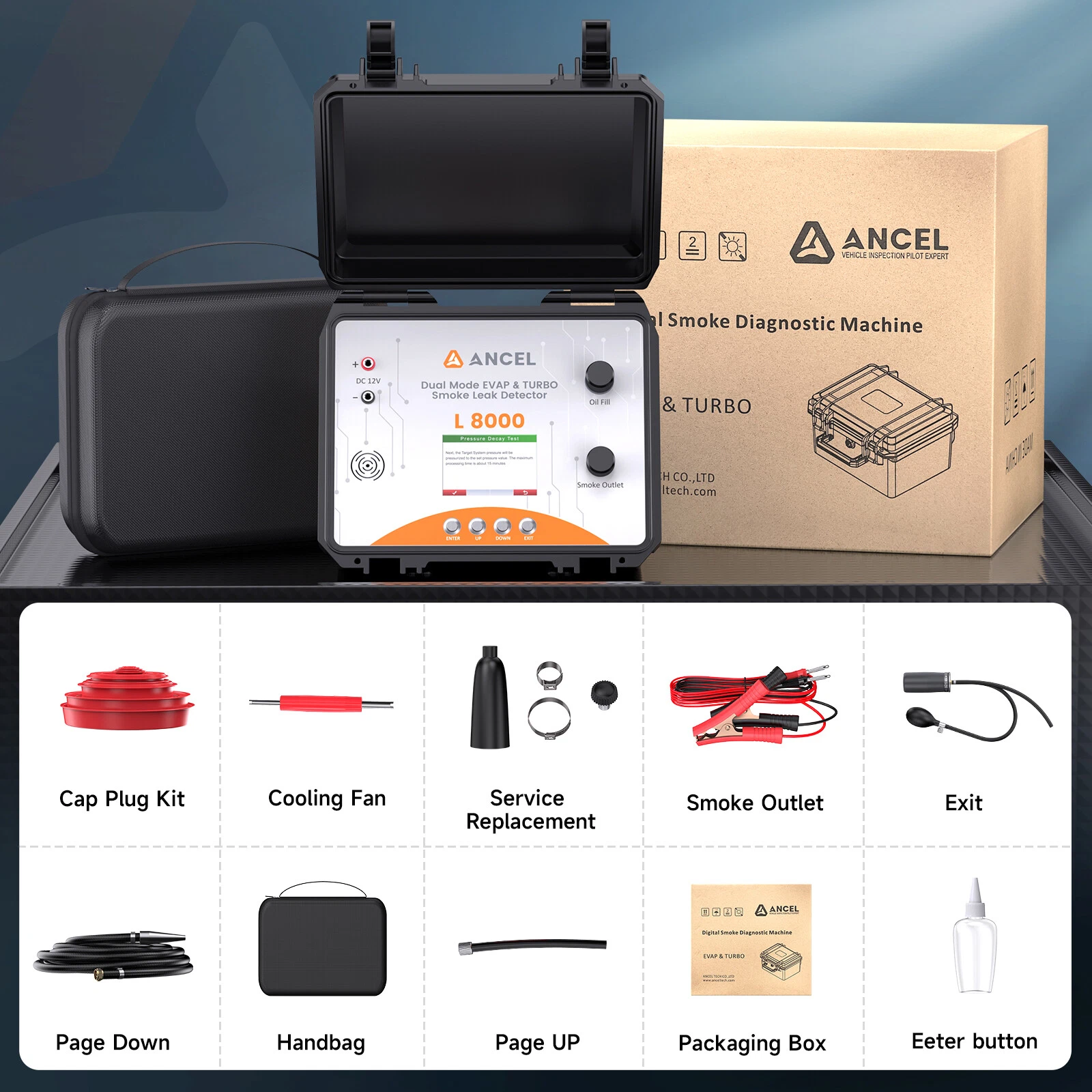

Items included	1L8000 Smoke Machine, 23Set of block off caps, Exhaust cone, Evap accessories, Air Intake Bladder
Has written warranty	No
Power type	Corded Electric
Extra battery included	N
Assembled product dimensions (l x w x h)	10.70 x 10.00 x 9.60 in
Weight	7 lb
Color	Black
