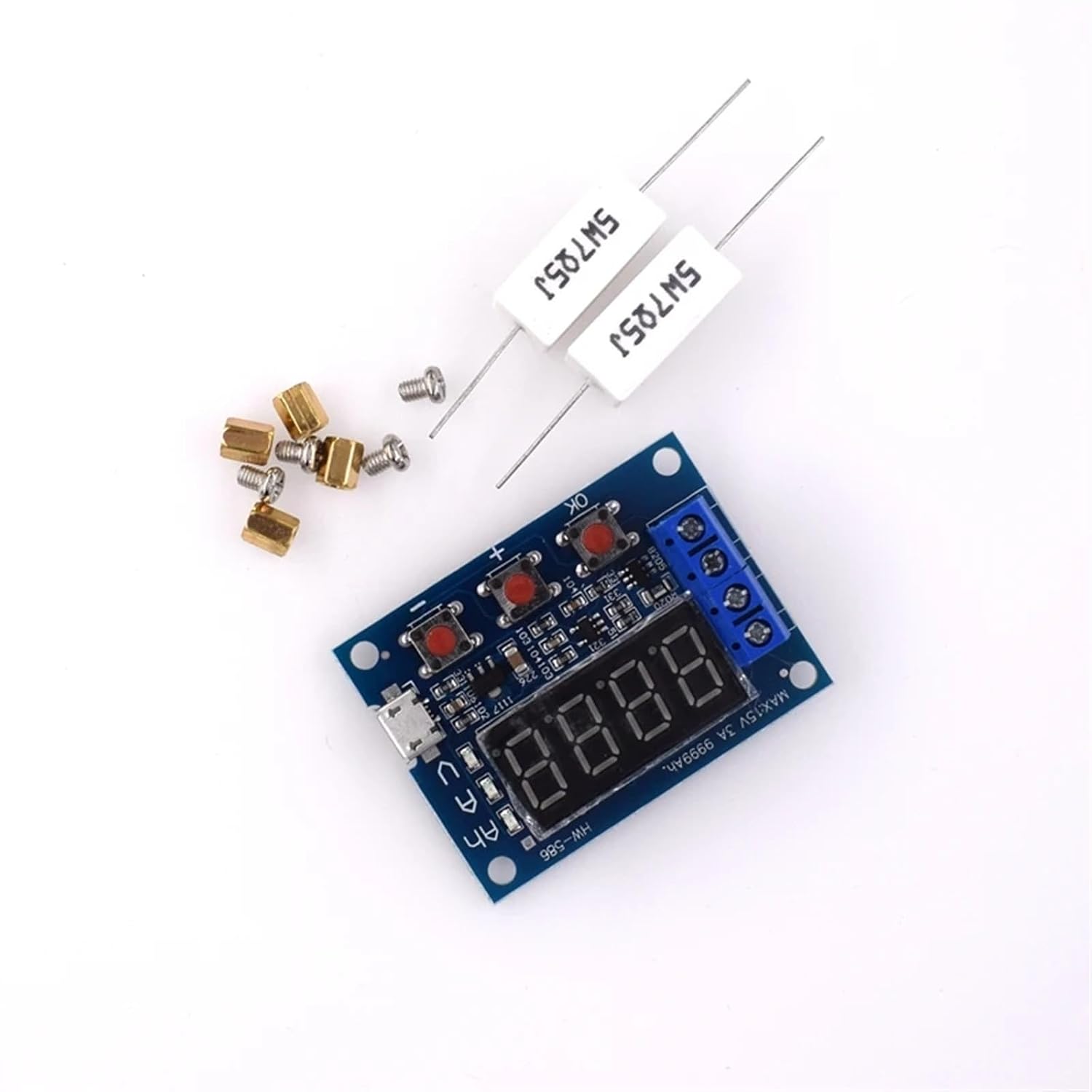

Battery Tester LED Digital Display Lithium Battery Power Supply Test Resistance Lead-Acid Capacity Discharge Meter

AmmetersMaterial: Electrical componentsColor: See picturesHW-586 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity resultsMaximum support 15V 3A discharged through the discharge voltage and current, itself does not dischargeMaximum capacity statistics support 9999Ah (9999000mAh)Automatically identify and develop appropriate battery termination voltage can also be manually adjustedSpecifications:Power supply voltage: DC4.5-6V (micro USB connector)Operating Current: less than 70mADischarge voltage: 1.00V-15.00V 0.01V resolutionTermination voltage range: 0.5-11.0VSupported by current: 3.000A 0.001A resolutionMaximum voltage measurement error: 1% + 0.02VMaximum current measurement error: 1.5% + - 0.008AMaximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.Board size: 50mmX37mmFinished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height)Instructions:1. The first test should be fully charged battery.2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be reversed (with load reversal may damage the circuit)! Load connected to the output of the positive and negative output, to work through the tester micro USB power supply (not available desktop or laptop USB powered), then the battery voltage.3. Direct start test need only one press of the "OK" button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times. Need to develop artificial termination voltage
