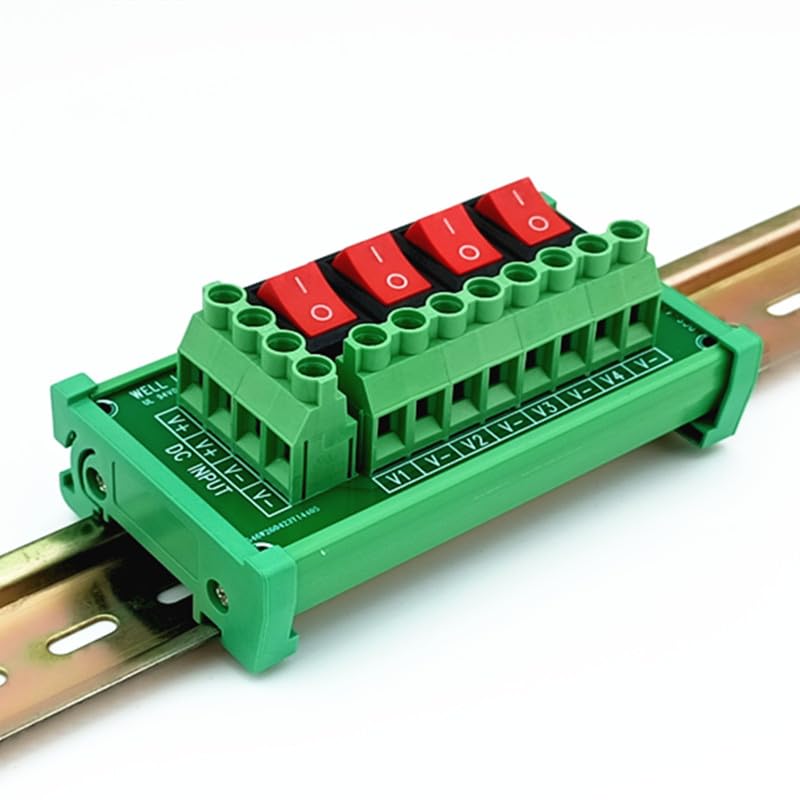

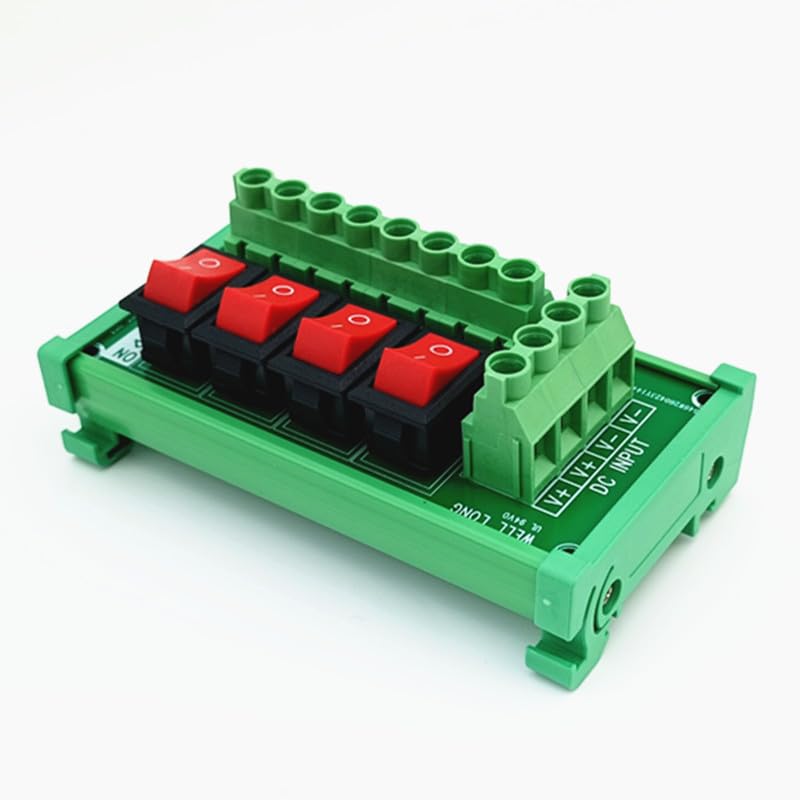

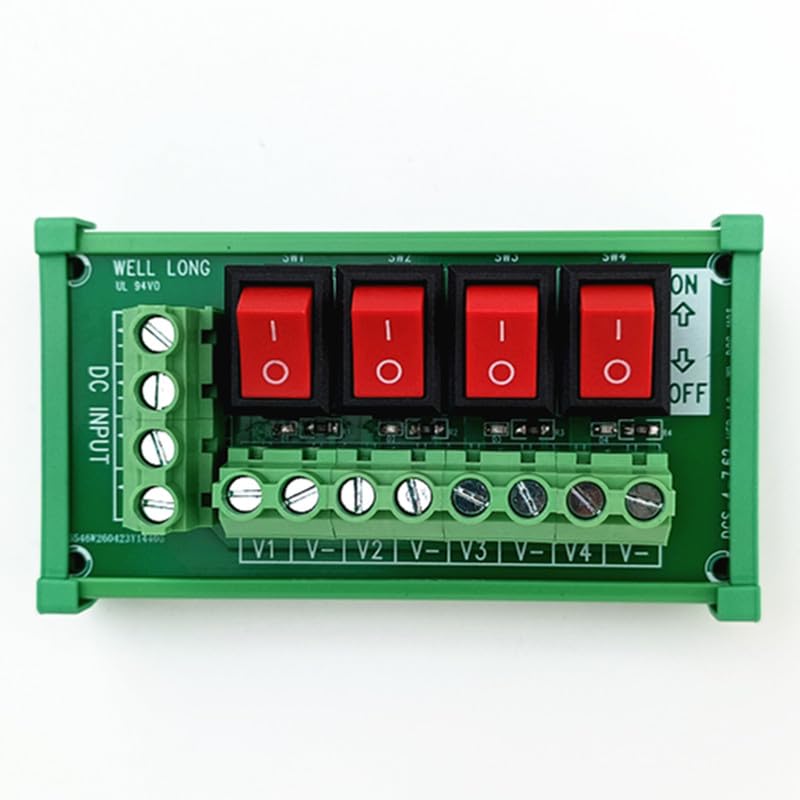

DIN Rail Mount 4 Channel Red Rocker Switch DC Power Distribution Strip Module.
Product details
| Management number | 247532448 | Release Date | 2026/08/16 | List Price | US$9.99 | Model Number | 247532448 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DIN Rail Mount 4 Channel Red Rocker Switch DC Power Distribution Strip Module. Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 4 Channels output, each channel maximum output current 10 Amps. Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function. High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
- Working voltage DC 0 to 50V. Maximum total input current 30 Amps.
- 4 Channels output, each channel maximum output current 10 Amps.
- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

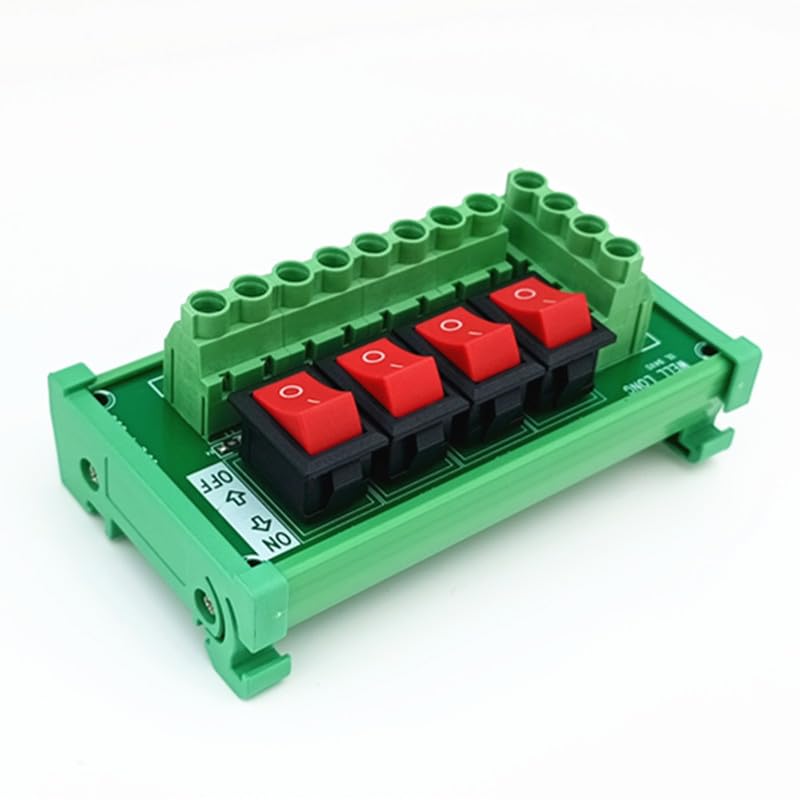

- Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function. High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
| ASIN | B0H3W1BF5J |
|---|---|
| Color | Green |
| Model | WL-DCS-1105R-A3 |
| Pitch | 0.1 inches |
| Voltage | 50 volts |
| Brand Name | SZ-WEEL LONG |
| Part Number | WL-DCS-1105R-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail |
| Connector Type | Terminals |
| Current Rating | 10 A |
| Number Of Poles | 4 |
| Number of Items | 1 |
| Number of Packs | 1 |
| Specification Met | UL |
| Temperature Range | -20to50 °C |
| Number Of Contacts | 4 |
| Included Components | Terminal Block, Connector, Din Rail Mount |

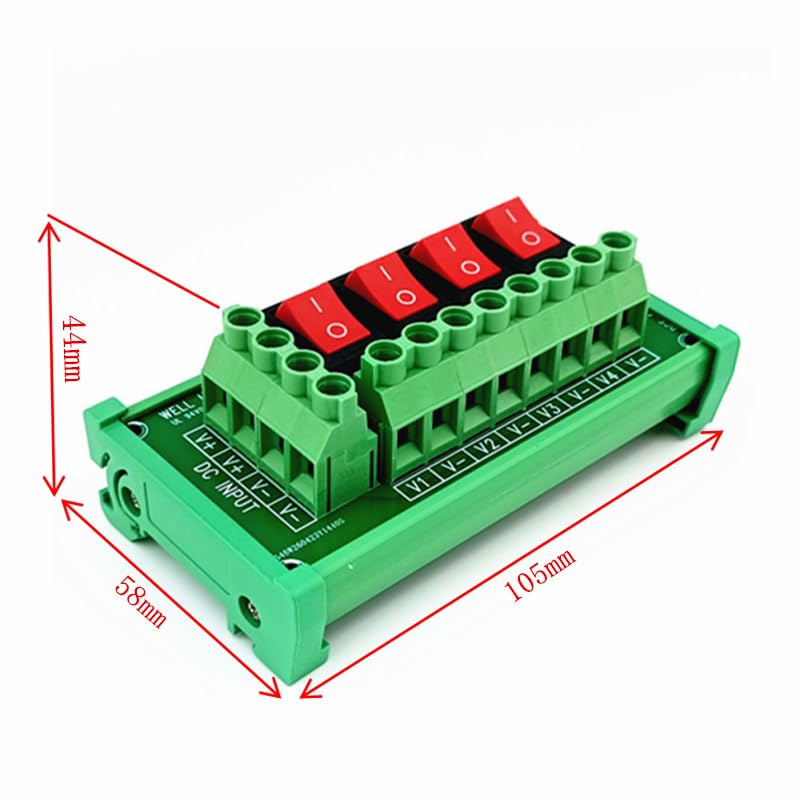

| Item Dimensions W x H | 2.2"W x 1.7"H |
| Upper Temperature Rating | 50 °C |
