Industrial Gigabit Passive PoE Injector Hardened POE Adapter with 12-24V DC Input 24V PoE Output DIN- Rail/Wall Mount

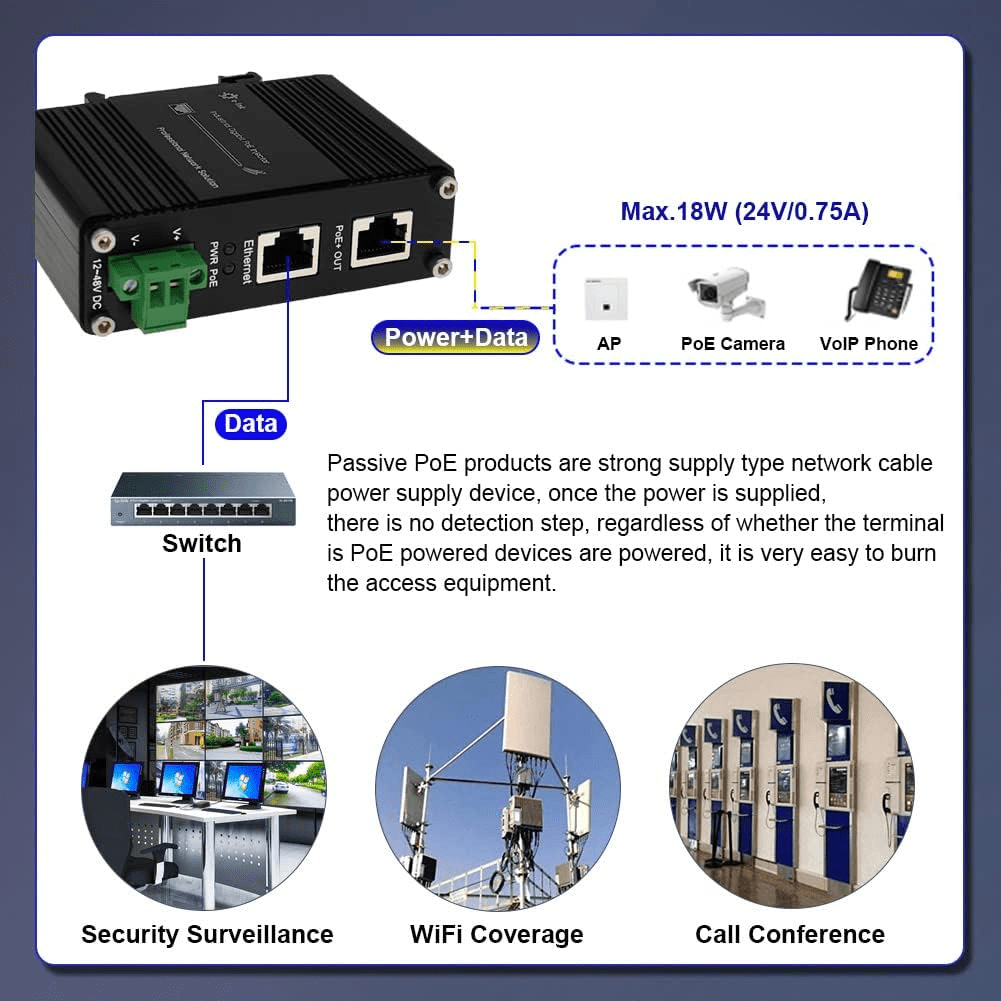

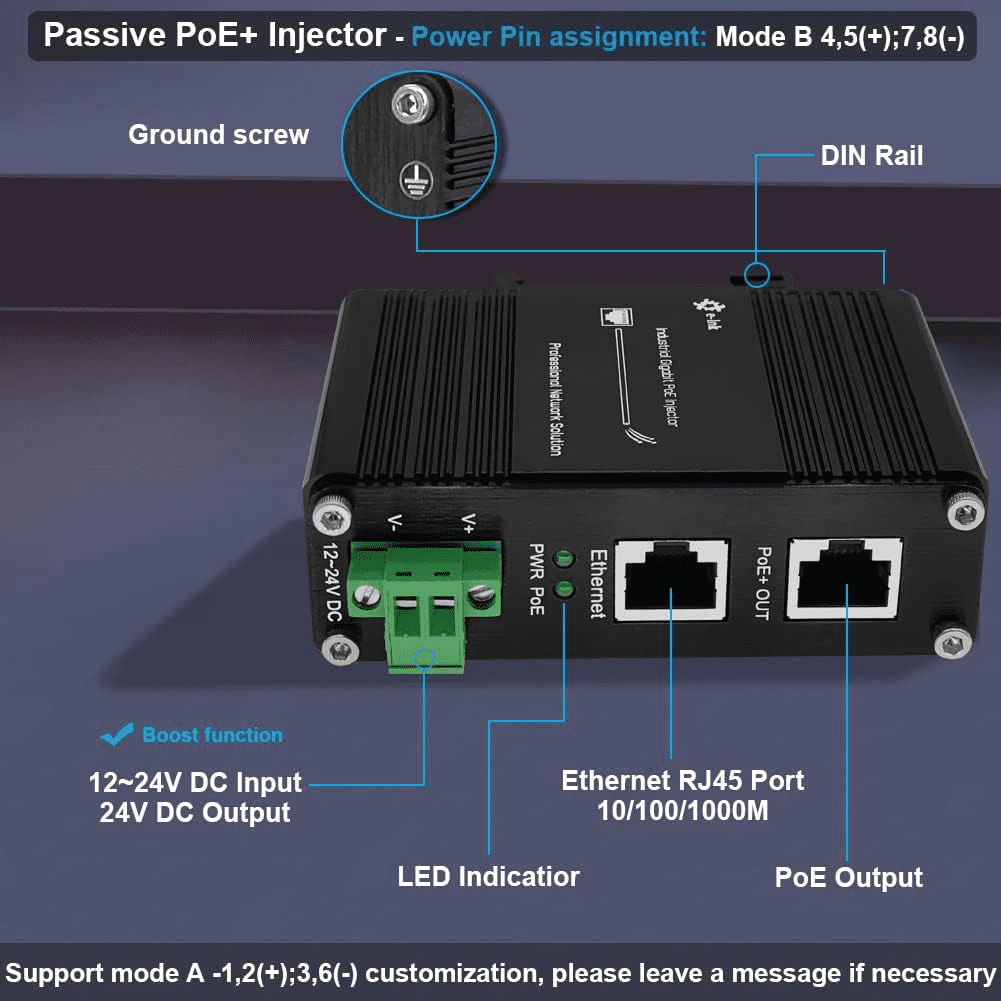

Overview: The item is an industrial hardened gigabit passive PoE injector allows you to connect the 24v passive PoE devices such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device), support 10/100/1000Base-TX. The PoE injector provides an integrated power solution with a wide range voltage of 12~24VDC for high availability applications. Features: 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power) Support 24V Power over Ethernet (PoE) Power Sourcing Equipment Support 12~24V DC input and boost to 24V PoE output Support 10/100/1000Base-TX RJ45 Support DIN-Rail & Wall-Mount installation Extensive LED indicators for PoE diagnostics

• • 【12~24V DC Input】- The passive PoE injector supports 12~24V DC input and boost to 24V PoE output. It will solve the problem that you only have 12V centralized power supply.

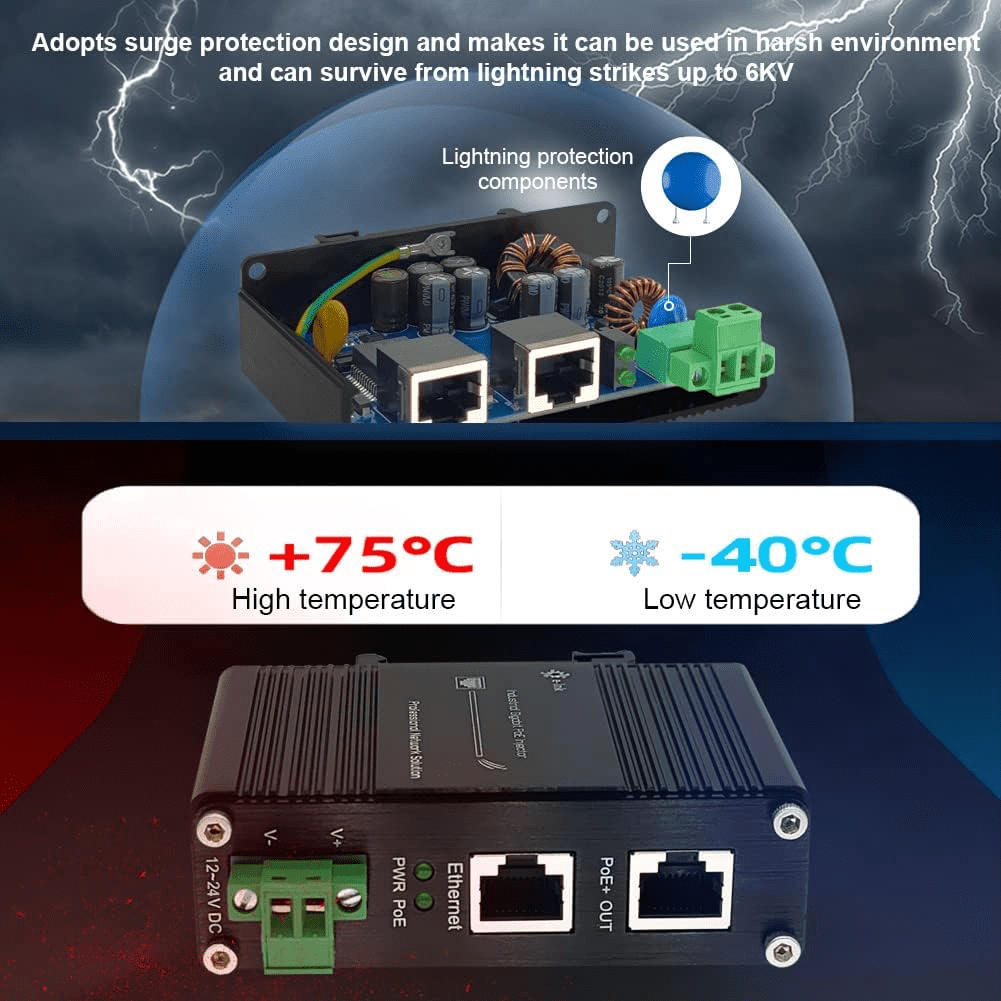

• • 【Industrial Grade Quality】- The PoE adapter uses industrial grade components and aluminum housing. -40℃ to 80℃ operating temperature and you can use it in outdoor harsh environment.

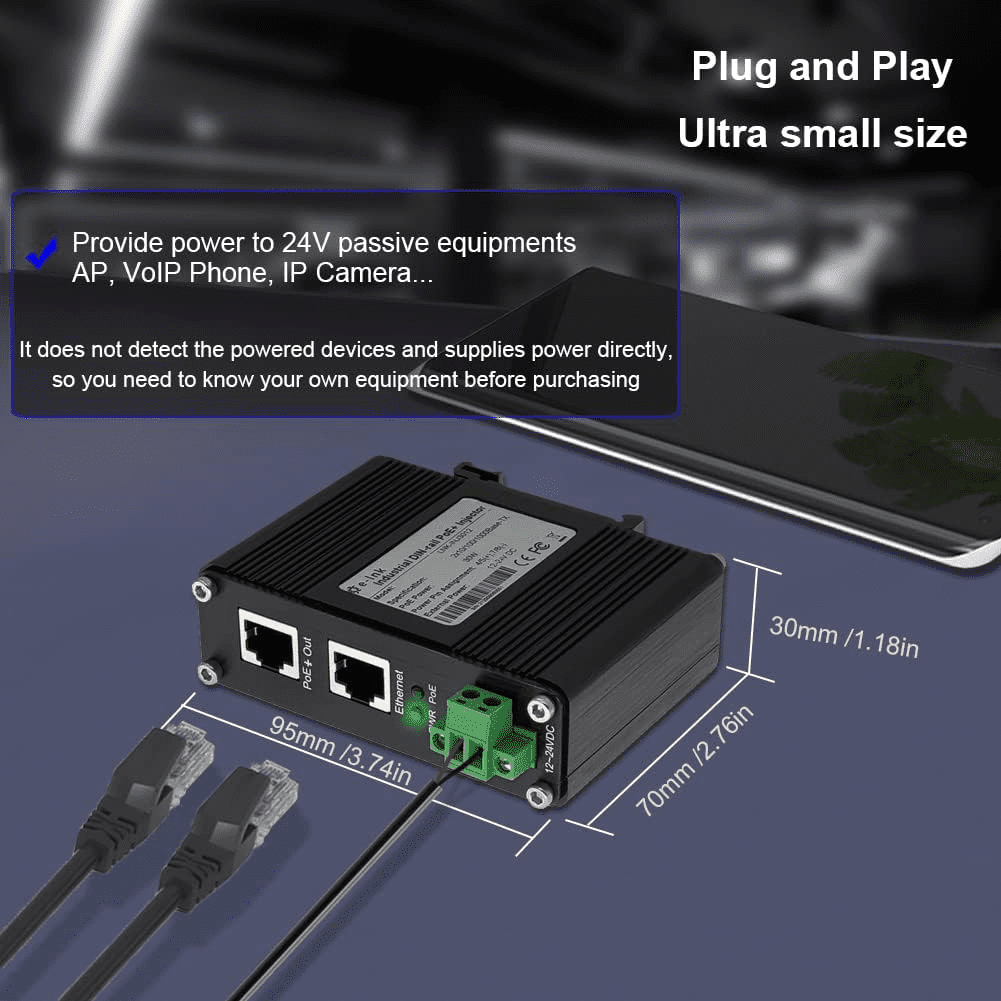

• • 【3.74x2.76x1.18in Small Size】- The 24V PoE injector has compact design and need small space to install. Plug and play, convenient to operate.

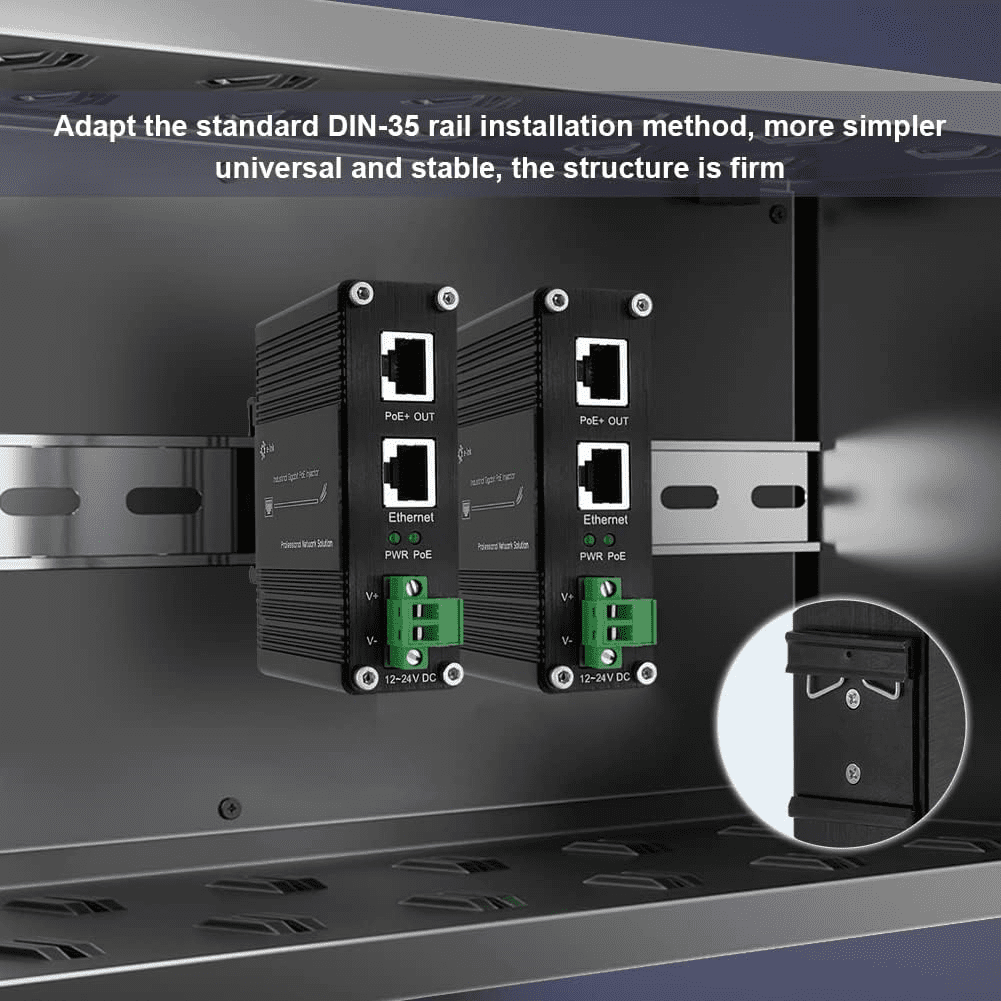

• • 【Din-Rail & Wall Mount】- The gigabit PoE injector comes with 35mm Din-rail clip and wall mount accessories. You have more choices to install it.
• • 【Matters Needing Attention】- Once the power is supplied, there is no detection step, regardless of whether the terminal is PoE powered devices are powered, it is very easy to burn the access equipment. So you need to know your equipment.
