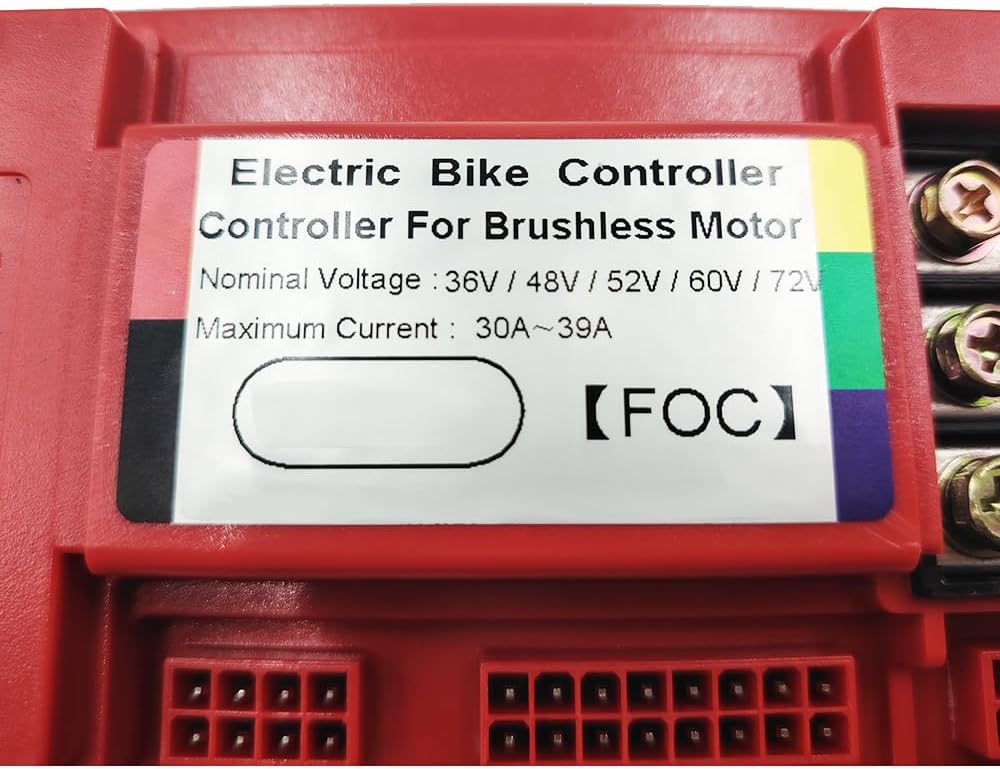

Intelligent Brushless Sine Controller 36V 48V 60V 72V 800W-1500W Maximum Current 39A Aluminium Alloy E-Bike Brushless Motor Controller for Electric Bicycle Scooter

36-72V 800-1500W brushless sine wave controller: 1.hall wire（5wires） 2.Intelligent recognition（self-learning line） 3.throttle 4.reverse 5.cruise 6.3-speed 7.high brake 8.Multi data instrument meter 9.phase meter 10.hall meter 11.electric door lock（key lock） 12.anti theft power supply 13.anti-theft signal 14.jog three-speed gear 15.low brake 16.differential motor dedicated How to connect controller？ 1.connect the motor phase line(color to color） 2. connect the hall line,color to color connect.(if motor without hall line, don't need connect) 3. connect the battery line(red:battery+ , black:battery-) 4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse. (1.if wheel forward ,Separate the intelligent recognition line. 2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.) This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps. 5. connect the controller throttle to throttle and need color to color connect, connect controller electric door lock to throttle electric door lock （if throttle not have electric door lock,let controller electric door lock short, so controller electric door must connect ） NOTE:when use throttle control speed,two intelligent recognition line must separate. 6.other functions can be connected as needed.

• Voltage: 36v-72v universal, after connecting the learning line, identify the voltage according to the battery condition.
• Power: 800W-1500w all can work
• Current Limit: Rated current 30A, maximum output 39A.
• Condition: Since the process is die-casting and injection molding, the product itself will have small flaws, but product function can work well.
