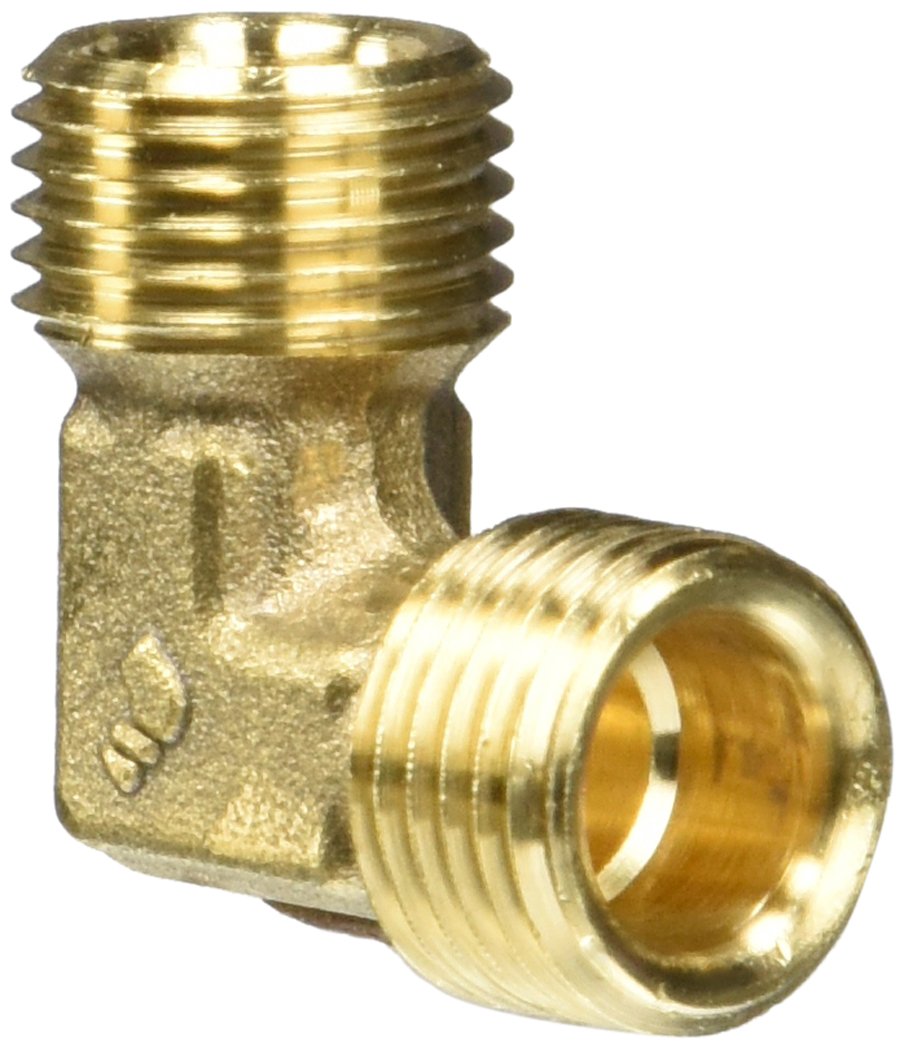

Legris 0102 28 00 Brass Compression Tube Fitting, 90 Degree Union Elbow, 28 mm Tube OD

This Legris 0102 series 90-degree brass union elbow compression tube fitting has metric outside diameter (OD) tube compression connections on both ends. It is suitable for connecting two plastic or metal tubes at a 90-degree angle to change the direction of flow between tubes. Compression fittings create metal-to-metal seals that withstand high pressures and temperatures. The fitting has a brass body and threads for durability and resistance to corrosion, has an operating temperature range of -40 to +250 degrees C, and has a pressure range from full vacuum to 550 bar. It meets European CNOMO standard E07.21.115N for use with robotic equipment in the automotive industry, 97/23/EC PED requirements for safety, Restriction of Hazardous Substances (RoHS) requirements for hazardous materials, and 94/9/EC ATEX requirements for use in explosive gaseous or dusty atmospheres. This 90-degree brass union elbow compression tube fitting is suitable for use with plastic or metal tubes in transferring water, machining oil, fuel, hydraulic oil, compressed air, non-corrosive chemicals, and disinfectants in a range of industries.Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, PBT (polybutylene terephthalate), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems for liquid handling, filtration, sealing and shielding, climate control, process control, and aerospace applications. The company, founded in 1918, is headquartered in Cleveland, OH.

• 90-degree union elbow to connect two tubes and change tube direction by 90 degrees
• Metric OD tube compression connections on both ends for connecting plastic or metal tubes
• Brass body and threads for durability and resistance to corrosion
• Operating temperature range of -40 to +250 degrees C
• Meets European standards for use with robotic equipment in the automotive industry, safety, hazardous materials, and for use in explosive gaseous or dusty atmospheres
